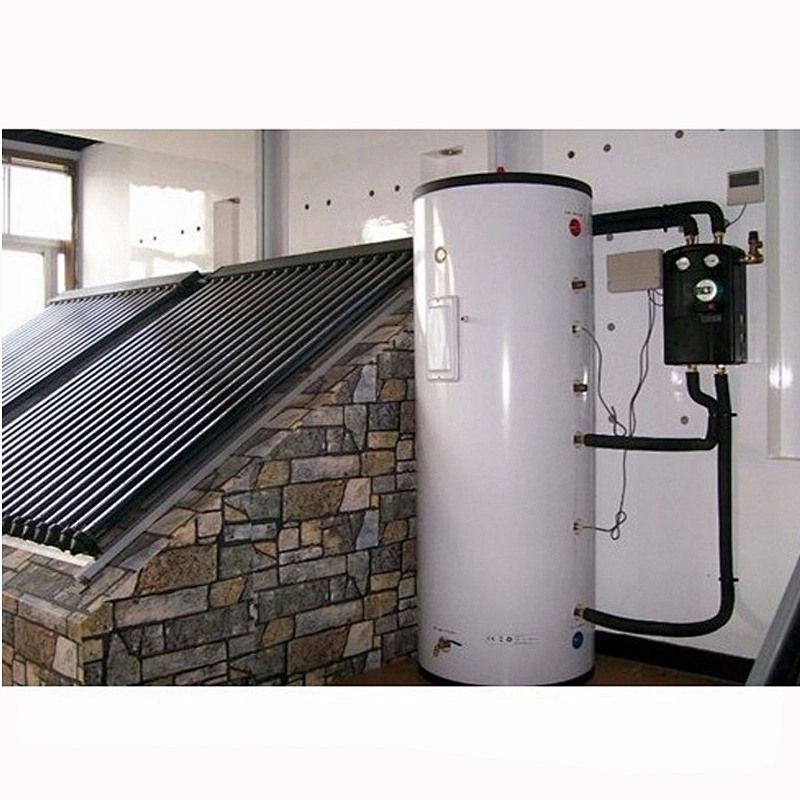

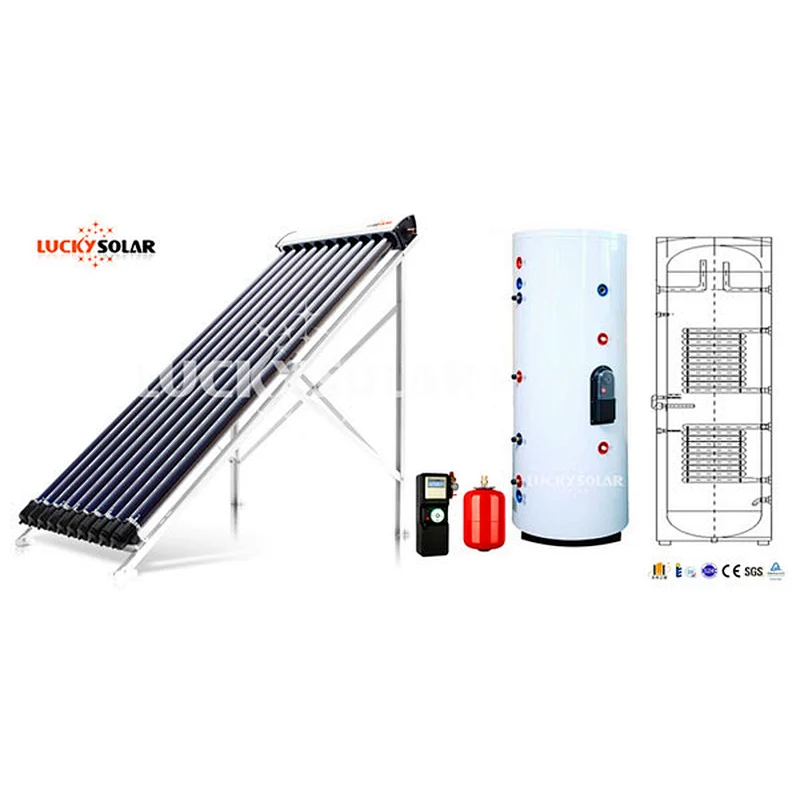

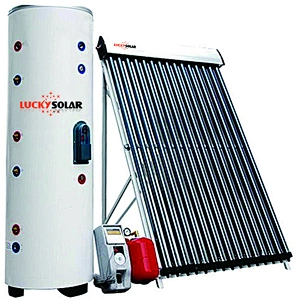

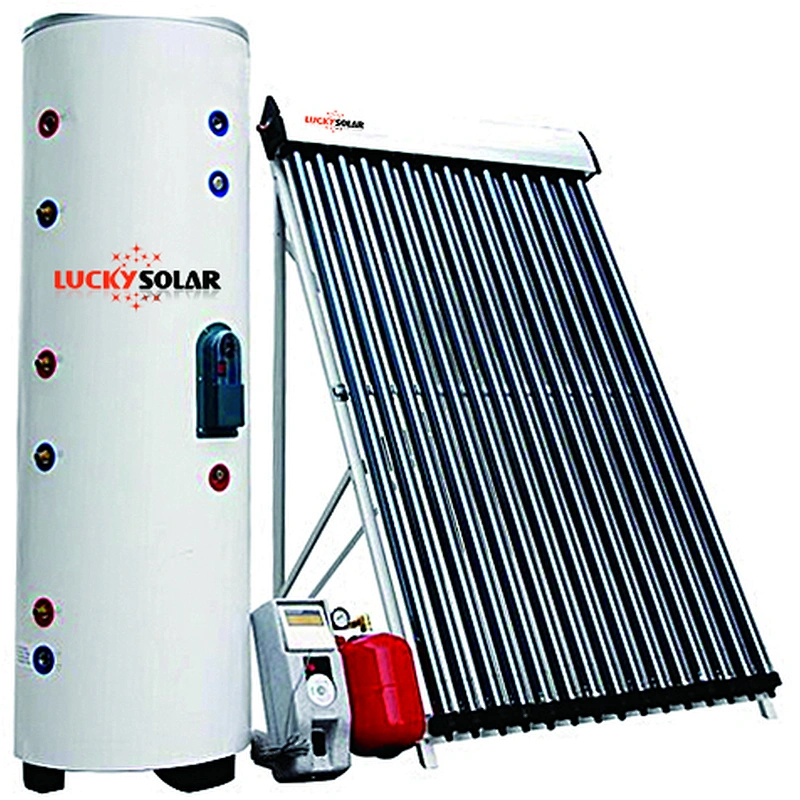

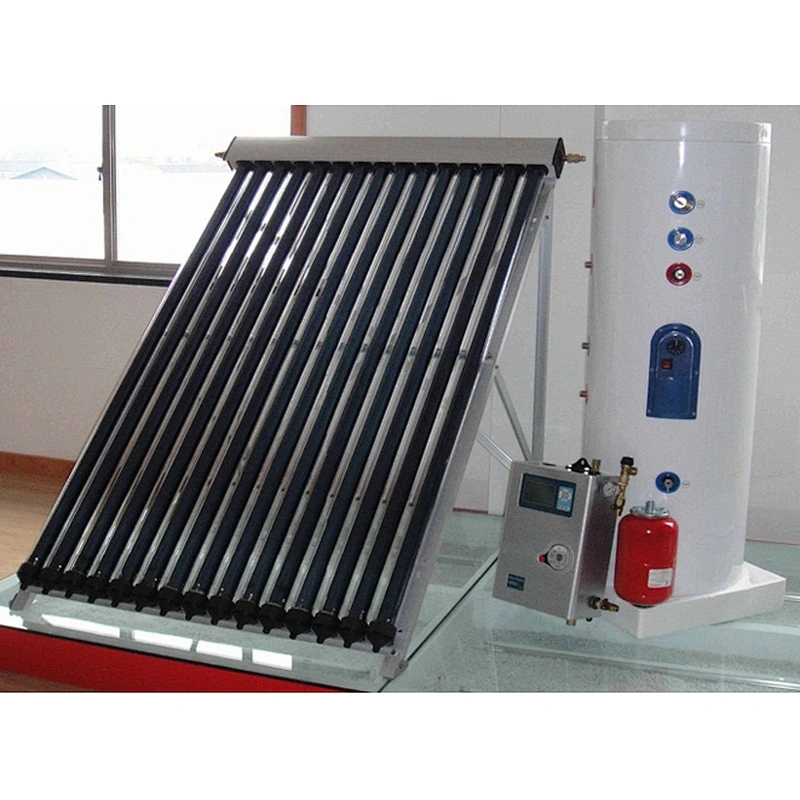

Separated Pressure Bearing System General Information
Working principle
1) When the discrepant temperature of the solar collector and water tank reaches the set value, the controller shall start the circulation pump automatically.
2) The circulation pump makes heat-conducting liquid circulate automatically.
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank.
4) In case the temperature of the water tank does not reach the T max, then start the auxiliary heating device.
5) If discrepant temperature of the collector and the water tank does not reach the set value, the circulation pump shall be shut automatically.
Characteristics
1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7) Multifunction: Bathing, washing, domestic heating
8) Workable at anytime and enjoyable

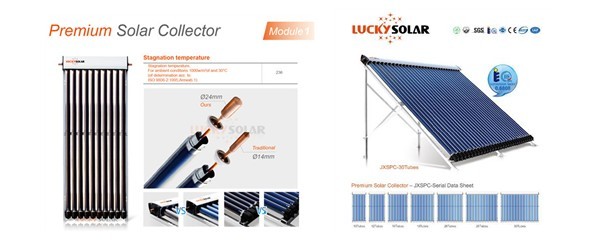

Premium Solar Collector
Top Heat Efficiency : 0.73209
----SOLAR KEYMARK-EN12975, CE, certificated model
| Size | Tube Quantity | Heat Pipe Condenser | Aperture Area | Gross Area | Gross Length | Gross Width | Gross Height | Loading Qty |
【mm】 | 【pcs.】 | 【mm】 | 【M2】 | 【M2 | 【mm】 | 【mm】 | 【mm】 | 【20/40ft /set】 | |
JXSPC-10 | 58x1800 | 10 | 24 | 0.941 | 1.600 | 2290 | 673 | 130 | 164/406 |
JXSPC-12 | 58x1800 | 12 | 24 | 1.128 | 1.852 | 2290 | 808 | 130 | 145/363 |
JXSPC-15 | 58x1800 | 15 | 24 | 1.410 | 2.315 | 2290 | 1010 | 130 | 127/315 |
JXSPC-18 | 58x1800 | 18 | 24 | 1.692 | 2.778 | 2290 | 1212 | 130 | 114/281 |
JXSPC-20 | 58x1800 | 20 | 24 | 1.880 | 3.087 | 2290 | 1347 | 130 | 97/240 |
JXSPC-25 | 58x1800 | 25 | 24 | 2.350 | 3.858 | 2290 | 1683 | 130 | 83/205 |
JXSPC-30 | 58x1800 | 30 | 24 | 2.820 | 4.630 | 2290 | 2020 | 130 | 70/173 |
Premium Solar Collector Specification
Three-target Vacuum Tube Performance and Specification: | ||
Tube structure | All-glass double deck co-axial structure | |
Glass material | High borosilicate 3.3 glass | |
Outer tube diameter and glass thickness | Ø58±0.7mm;Glass thickness 1.6±0.15mm | |
Inner tube diameter and glass thickness | Ø47±0.7mm;Glass thickness 1.6±0.15mm | |
Tube dimension | 58*1800mm | |
Absorption | Coating material | CU/SS-ALN(H)/SS-ALN(L)/ALN |
Sediment method | Three Target magnetron sputtering plating | |
Absorptivity | α=0.92～0.96(AM1.5) | |
Emission ratio | Emission:ε=0.04～0.06(80℃±5℃) | |
Vacuum degree | P≤5.0X10-3(PA) | |
Stagnation temperature (temperature inside of empty evacuated tubes) | 260～300℃ | |
Average heat loss | ULT 0.4～0.6 W/(m2 *℃) | |
Hail resistance | Ø25mm | |
24mm Premium Heat Pipe Performance and Specification: | |
Heat pipe material | Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm) |
Condenser dimensions | Top:Ø24mm*65mm，Body:Ø8*0.6mm.length:1750±10mm |
Heat-transfer-fins | 0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm |
Starting speed | 30s |
Max. operation pressure | 6bar |
Max. testing pressure | 12bar |
Stagnation temperature | 236℃ |
Manifold Performance and Specification: | |
Manifold header pipe | TU2 copper |
Manifold casing | Anodized aluminum alloy (6063-T5/T6) |
Insulation layer | Compressed rock wool. |
Bracket Performance and Specification: | |
Bracket | Aluminum alloy/stainless steel/galvanized steel optional. |
Vertical installation angle | Flat & pitched roof |
Other Components Performance and Specification: | |
58 dia. Anti dust rubber ring | Cymene ethylene silicon rubber(110) |
58 dia. White inner stopper of heat pipe | Cymene ethylene silicon rubber(110) |
58 dia. Tube holder | Nylon 1013-(B) |
58 dia. Tube holder cover | Nylon 1013-(B) |
End cover for manifold | Nylon 1013-(B) |
Left seal ring | Silicon rubber(110) |
Solar Water Tank – 0/Single/Double Copper Coil
--- (JXDT- Serial - CE Certificated Model)
JXDT-Solar Water Tank SpecificationⅠ | |
Material of out tank | High quality color coated steel |
Material of inner tank | SUS 304-2B stainless steel. |
Tank insulating layer | with 45kg/m³ high-density polyurethane foamed |
Out/inlet connection size(inch) | 3/4inch, NPT |
Copper coil connector size(inch) | 1/2 inch NPT |
Working pressure(Mpa) | 0.6 |
Temp. Control(℃) | 30-95C |
Heat exchanger material | Copper Coil |
Free components: | Electric heater, Magnesium rod, T/P valve, Pressure reducing valve |
Solar Water Tank Performance and Specification Ⅱ | ||||||
Tank Size(mm) | Tank Size(mm) | Insulation Layer | Inner Tank Thickness | Out Tank Thickness | Electric Heater Power | Packing Dimension(mm) |
JXDT-100L | 470 | 50mm | 1.0mm | 0.5mm | 1500W | 560*560*1200 |
JXDT-150L | 470 | 50mm | 1.2mm | 0.5mm | 1500W | 560*560*1550 |
JXDT-200L | 550 | 50mm | 1.5mm | 0.5mm | 1500W | 660*660*1500 |
JXDT-250L | 580 | 50mm | 1.5mm | 0.5mm | 1500W | 660*660*1600 |
JXDT-300L | 580 | 50mm | 1.5mm | 0.5mm | 1500W | 660*660*1800 |
JXDT-400L | 700 | 50mm | 2.0mm | 0.5mm | 2000W | 780*780*1700 |
JXDT-500L | 700 | 60mm | 2.0mm | 0.5mm | 3000W | 780*780*2050 |
Working Station+Controller+Expansion Vessel Specification
Main Technical Parameters: | ||
| 1.Dimension:465×165×113mm | 3.Power:≤3W |
2.Input voltage:200V～240V AC or 100V～120V AC | 4.Accuracy of temperature measuring:±1℃ | |
5.Range of temperature measuring:0～99℃ | ||
6.Input signals:(1)1xPT1000 sensor temperature probe≤500℃,silicon cable≤280℃; | (2)x NTC10K sensor temperature probe≤135℃,PVC cable≤105℃ | |
7.Output signals:(1)1xAuxiliary heating output (Max. load current:12A) | (2)2 x Relay output (Max. load current:3A) | |
8.System design pressure:1MPa | 12.Pipeline Material:Brass | |
9.Safety valve respond pressure:0.6MPa | 13.LCD-display | |
10.WILO pump model:RS15/6 | 14.Range of environment temperature:-10～50℃ | |
11.Screw coupling:1/2〞 | 15.Water protection grade:IP40 | |
Main Functions: | ||
1.Time display | 6.Three periods of time adjustable on pipeline circulation | |
2.Temperature difference circulation | 7.Three periods of time adjustable on auxiliary heating | |
3.Storage tank overheating protection | 8.Three speed levels on circulation pump | |
4.Emergent stop of system overheating | 9.Adjust flow rate | |
5.Frost protection of pipeline and collector | 10.Display system pressure | |
Pump-WILO RS15/6-Technical Parameters: | ||
| 1.220V/50HZ or 110V/60HZ | 4.Largest Volume:2.5/2.5/1.5 m3/h |
2.Input power:93/67/46W | 5.Diameter pipe:15(outer 25mm) | |
3.Lifting length:6/5/3m | 6.Weight:2.1kgs | |
 | Expansion Vessel - Technical Parameters: | ||||
| Model | JXV-12L | JXV-18L | JXV-24L | JXV-36L | |
| Capacity | 12L | 18L | 24L | 36L | |
| Diameter | 270 | 270 | 270 | 350 | |
| Height | 300 | 400 | 450 | 560 | |
| Pre-charged pressure | 1.5BAR | 1.5BAR | 1.5BAR | 1.5BAR | |
| Max Pressure | 10BAR | 10BAR | 10BAR | 10BAR | |
| Max Temperature | 99℃ | 99℃ | 99℃ | 99℃ | |
| Connector size | Gl",G3/4" | G1",G3/4" | Gl",G3 | G1",G3/4" | |
