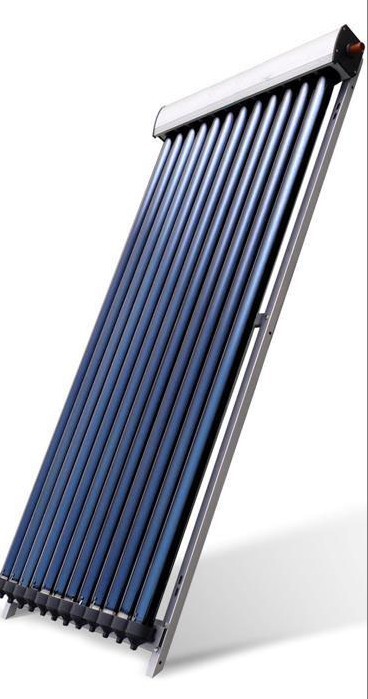

standard solar collector--14mm heat condensor
Description:

Standard Heat Pipe Solar Collectors General Information -JXSC-Serial

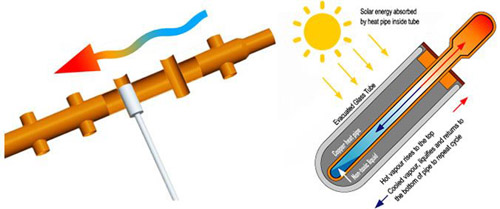

Characteristic

1. Adopts red copper channel, with great performance of heat exchange.
2. Utilize copper heat pipes containing special medium liquid with low boiling point.
3. Work well in all climate, can be function well even in ambient temperature of minus 30 degree Celsius.
4. Each heat pipe tube works independent and efficiently.
5. No water flows inside the vacuum tube, no risk of freezing.
6. Withstand high water pressure of up to 1.2 Mpa.

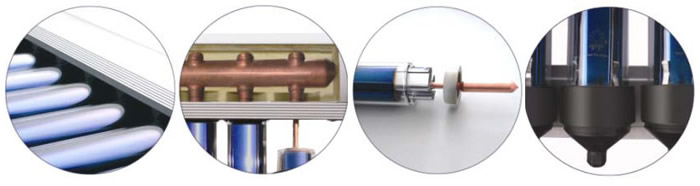

Material

1. Manifold: Aluminum alloy
2. Channel: Red copper
3. Heat pipe: Copper
4. Bracket: Aluminum alloy/ Galvanized steel/ Stainless steel
5. Insulation material: Rock wool

Standard Heat Pipe Solar Collectors Specification -JXSC-Serial

Three-target vacuum tube performance and specification:

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm;Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm;Glass thickness 1.6±0.15mm

Tube dimension:

58*1800mm

Hail resistance

Ø25mm

Pressure-endure

1MPa

Heat pipe performance and specification:

Heat pipe material

TU1 copper

Heat pipe size

Top:Ø14mm

Heat-transfer-find

Double Aluminum fins with 1630mm.standard models

Heat transfer fluid

Pure water

Manifold performance and specification:

Manifold header pipe

TP2 copper

Manifold casing

Anodized aluminum alloy

Bracket performance and specification:

Bracket:

Stronger galvanized steel,Al-alloy or stainless steel,optional

Bracket angle:

22,38,45 flat roof optional.

Fastening pieces:

Made of hot-galvanized coated stainless steel screw

Tuber holder material:

UV stabilized nylon

Seal

Silicon seals

JXSC-Serial Solar Collector Data Sheet

JXSC-serial

Size(mm

Tube

Condenser Size(mm)

Aperture Area(M2)

Gross Area(M2)

20GP/40HQ

【mm

【pcs.】

【mm】

【M2】

【M2】

【set】

JXSC-10

58x1800

10

14

0.930

1.597

164/406

JXSC-12

58x1800

12

14

1.116

1.842

145/363

JXSC-15

58x1800

15

14

1.430

2.310

127/315

JXSC-18

58x1800

18

14

1.674

2.758

114//281

JXSC-20

58x1800

20

14

1.860

3.067

97/240

JXSC-25

58x1800

25

14

2.325

3.838

83/205

JXSC-30

58x1800

30

14

2.790

4.600

70/173
