Description:

Key Specifications/Special Features:

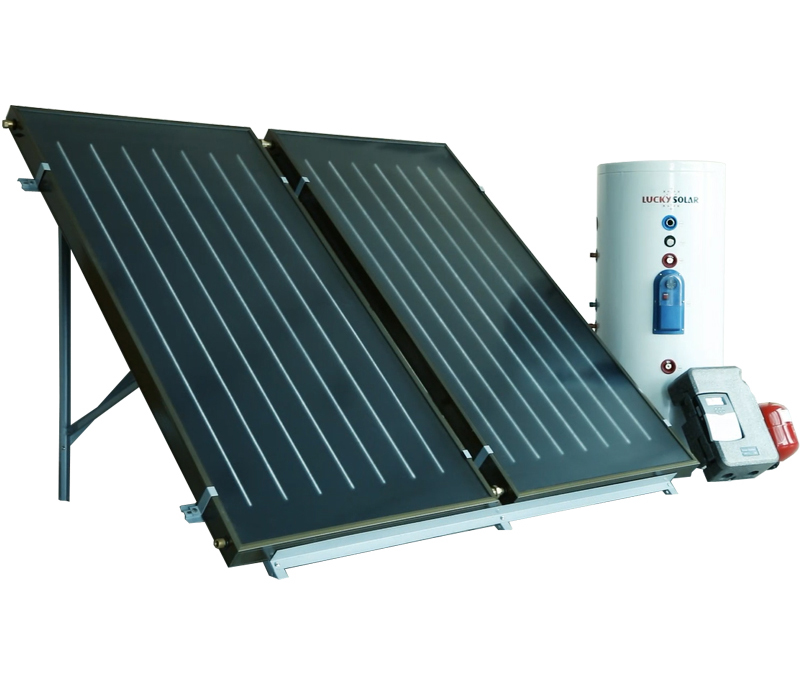

Imported Bluetec Heat Absorbing Coat, Gathering Energy WisdomBluetec heat absorbing board, imported from Germany, with magnetron sputtering technology. The surface is coated with gradient-changed multilayer(AI-N/AI), which leads to the good spectral selectivity and the extremely high thermal efficiency. Top Level Heat Efficiency, Enjoy Warmth from SunshineSolar absorption rate reaches 92%, emissivity is only 8%, energy saving and low carbon release to make comfortable enjoyment.

Product parameter

Absorber paint layer material: Bluetec collector
Absorber materials: 0.2/0.3 mm Copper plate or 0.2/0.3 mm Aluminum plate
Area of heat collector: 2/2.42 sq m
Effective area of heat collecting: 1.83/2.18 sq m
Liquid capacity of heat collector: 1.4/2.1 L
Glass thickness: 3.2/4 mm
Maximum operating pressure: 6 Bar
Maximum testing pressure: 15 Bar
Wide open temperature: 200 °C
Weight: 42kg
Size Dimension: 2000 x 1000 x 80(mm)/2200 x 1100 x 94(mm)

Flat Panel Solar Collector Specification

Specifications

JMS-GV2.00T

Dimension LxWxH (mm)

2000*1000*80

Gross Area (m2 )

2

Aperture Area (m2 )

1.95

Absorber Area (m2 )

1.9

Number of covers

1

Cover material

Low iron, tempered glass

Cover Thickness(mm)

3.2

Cover Transmission

>91.4%

Weight

36Kg

Absorber

Material

Aluminum board

Surface Treatment

Sputtering (cermet)

Absorptivity

95±2%

emissivity

5±2%

Construction Type

Grid type

Header Material

Copper TP2/CA1220

Header tuber size

∮22mm*Thickness 0.8mm

Riser Material

Copper TP2/CA1220

Riser tuber size

∮8mm* Thickness 0.75mm

Work Pressure

0.6Mpa

Test pressure

1.2Mpa,keeps 5 minutes

Thermal Insulation

Insulation Material

Fiberglass

Insulation Thickness

45+/-5mm

Density

35kg/cube

Casing

Frame

Aluminum alloy

Frame Color

silver or black

Back Plate

Aluminum plate

Max Operation Temperature

95℃

Sealing Gasket

EPDM
