premium solar collector--24mm super heat condensor
Description:

Premium Solar Collector

---SOLAR KEYMARK-EN12975, CE, certificated model

MODEL

Size

Tube Quantity

Heat Pipe Condenser

Aperture Area

Gross Area

Gross Length

Gross Width

Gross Height

Loading Qty

【mm】

【pcs.】

【mm】

【M2】

【M2】

【mm】

【mm】

【mm】

【20/40ft/set】

JXSPC-10

58x1800

10

24

0.941

1.600

2290

673

130

164/406

JXSPC-12

58x1800

12

24

1.128

1.852

2290

808

130

145/363

JXSPC-15

58x1800

15

24

1.410

2.315

2290

1010

130

127/315

JXSPC-18

58x1800

18

24

1.692

2.778

2290

1212

130

114/281

JXSPC-20

58x1800

20

24

1.880

3.087

2290

1347

130

97/240

JXSPC-25

58x1800

25

24

2.350

3.858

2290

1683

130

83/205

JXSPC-30

58x1800

30

24

2.820

4.630

2290

2020

130

70/173

Premium Solar Collector Specification

Three-target Vacuum Tube Performance and Specification:

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm;Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm;Glass thickness 1.6±0.15mm

Tube dimension

58*1800mm

Hail resistance

Ø25mm

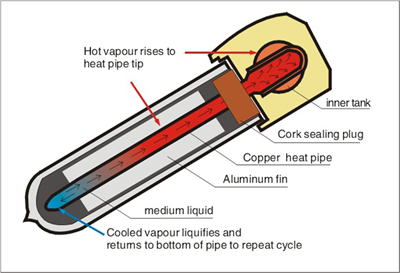

24mm Premium Heat Pipe Performance and Specification:

Heat pipe material

Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)

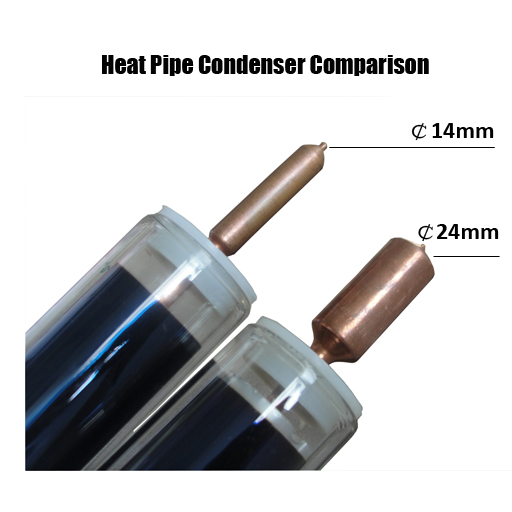

Condenser dimensions

Top: Ø24mm

Heat-transfer-fins

0.3mm/0.0098’’ thick sets of Aluminum fins

Starting speed

30s

Max. operation pressure

6bar

Max. testing pressure

12bar

Stagnation temperature

236℃

Manifold Performance and Specification:

Manifold header pipe

TU2 copper

Manifold casing

Anodized aluminum alloy (6063-T5/T6)

Insulation layer

Compressed rock wool.

Bracke Performance and Specification:

Bracket

Stronger galvanized steel structure

Vertical installation angle

Flat roof 0~700

Other Components Performance and Specification:

58 dia. Anti dust rubber ring

Cymene ethylene silicon rubber(110)

58 dia. White inner stopper of heat pipe

Cymene ethylene silicon rubber(110)

58 dia. Tube holder

Nylon 1013-(B)

58 dia. Tube holder cover

Nylon 1013-(B)

End cover for manifold

Nylon 1013-(B)

Left seal ring

Silicon rubber(110)
