Non-pressure solar water heater---Colored steel JX-NP-58/1800

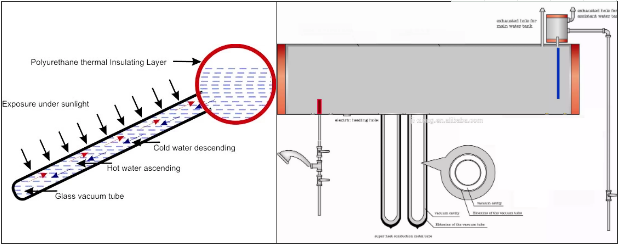

How it works

The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element. The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level. All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films. Depend on the different density between the hot water and the cold water, a cycle created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank will be heated.

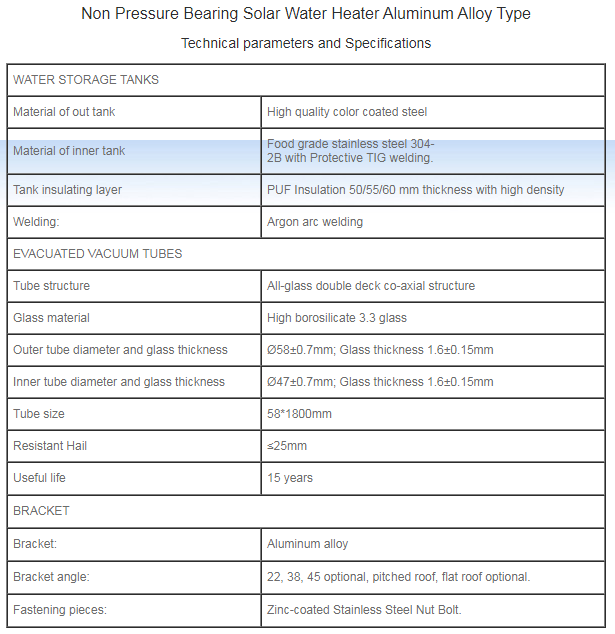

Material

1. Inner tank: SUS304-2B stainless steel

2. Outer tank: High quality color coated steel

3. Insulation: Polyurethane

4. Frame: 1.5/1.8/2.0/2.5mm aluminum alloy

Characteristics

1. Beautiful appearance, steady structure, higher grads.

2. Inner and outside water tank shell all are welded by argon arc.

3. The tubes and frame are adjustable, power bearing is average, and can assure the vacuum tubes to use long time.
