Model NO.
JXSP-FP-400L
Delivery:
EXW, FOB, CFR, CIF
Minimum order quantity:
2
Supply Ability:
5000 / Month
Country of Origin:
Zhejiang, China
Stock Time:
10 Days

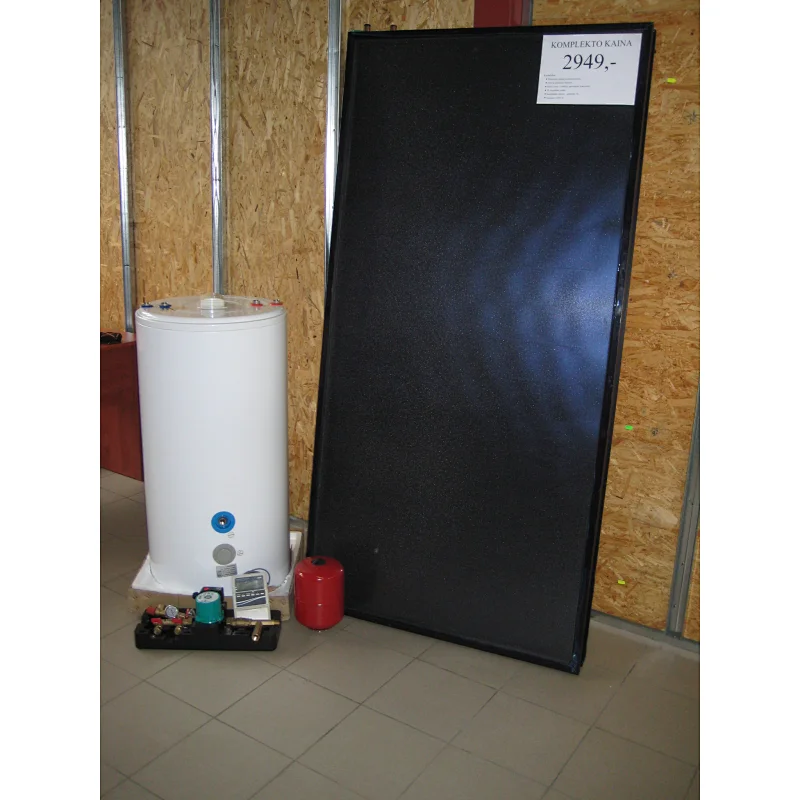

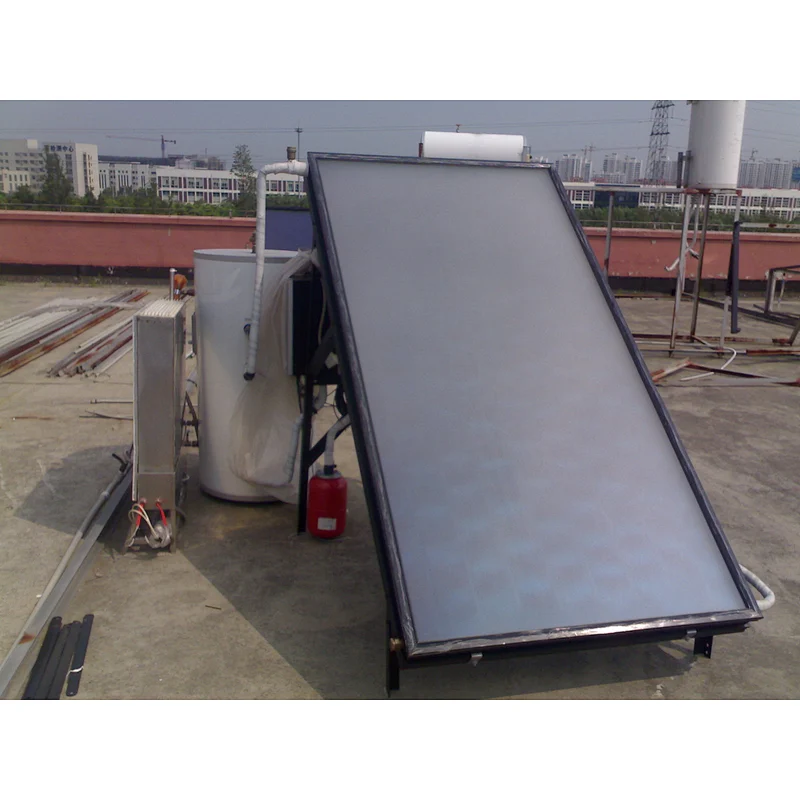

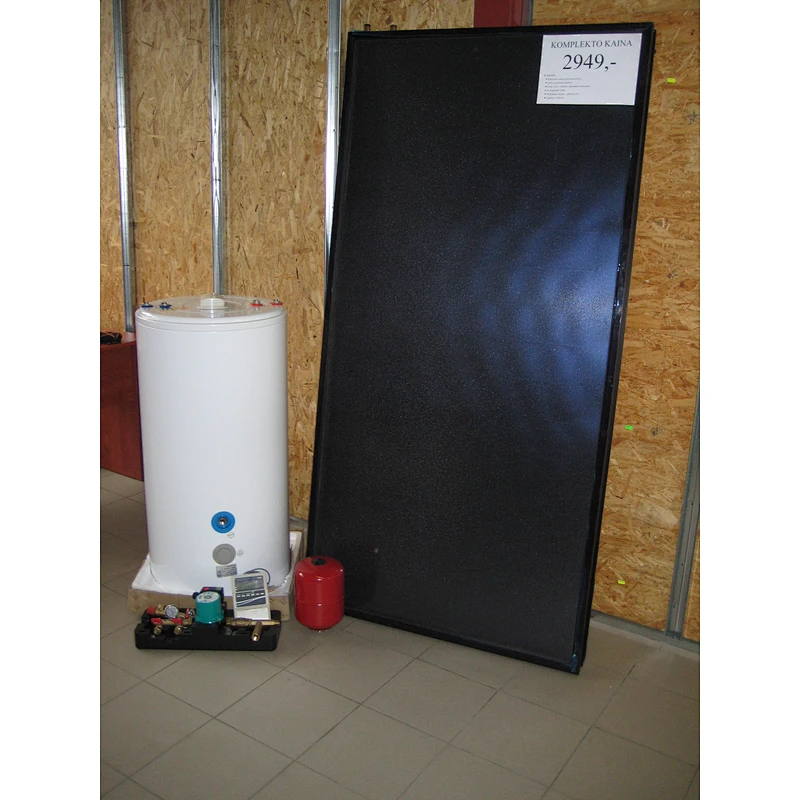

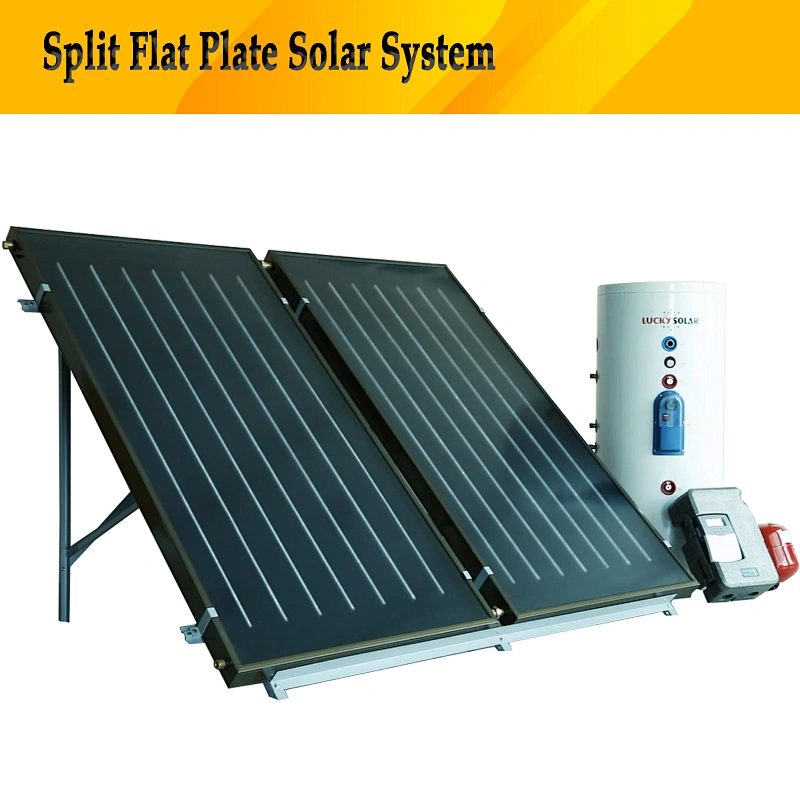

Split pressurized Solar System with flate plated solar collector
Quantity:

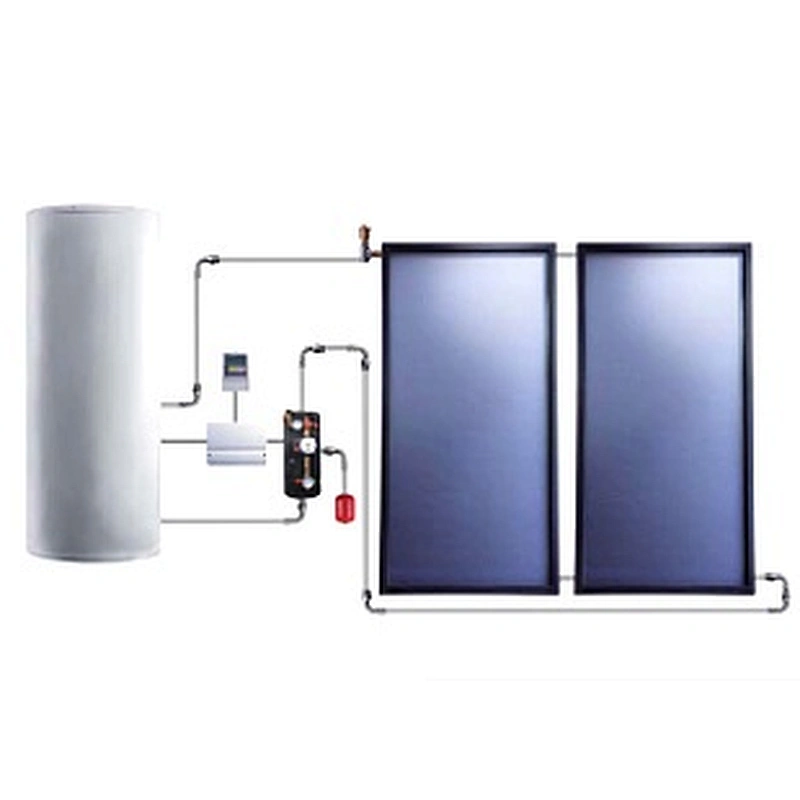

Working principle

1) When the discrepant temperature of the solar collector and water tank reaches the set value, the controller shall start the circulation pump automatically.
2) The circulation pump makes heat-conducting liquid circulate automatically.
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank.
4) In case the temperature of the water tank does not reach the T max, then start the auxiliary heating device.
5) If discrepant temperature of the collector and the water tank does not reach the set value, the circulation pump shall be shut automatically.

Characteristics

1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7) Multifunction: Bathing, washing, domestic heating
8) Workable at anytime and enjoyable

Solar Water Tank – 0/Single/Double Copper Coil

--- (JXDT- Serial - CE Certificated Model)

JXDT-Solar Water Tank SpecificationⅠ

Material of out tank

High quality color coated steel

Material of inner tank

SUS 304-2B stainless steel.

Tank insulating layer

with 45kg/m³ high-density polyurethane foamed

Out/inlet connection size(inch)

3/4inch, NPT

Copper coil connector size(inch)

1/2 inch NPT

Working pressure(Mpa)

0.6

Temp. Control(℃)

30-95C

Heat exchanger material

Copper Coil

Free components:

Electric heater, Magnesium rod, T/P valve, Pressure reducing valve



Solar Water Tank Performance and Specification Ⅱ

Tank Size(mm)

Tank Size(mm)

Insulation Layer

Inner Tank Thickness

Out Tank Thickness

Electric Heater

Power

Packing

Dimension(mm)

JXDT-100L

470

50mm

1.0mm

0.5mm

1500W

560*560*1200

JXDT-150L

470

50mm

1.2mm

0.5mm

1500W

560*560*1550

JXDT-200L

550

50mm

1.5mm

0.5mm

1500W

660*660*1500

JXDT-250L

580

50mm

1.5mm

0.5mm

1500W

660*660*1600

JXDT-300L

580

50mm

1.5mm

0.5mm

1500W

660*660*1800

JXDT-400L

700

50mm

2.0mm

0.5mm

2000W

780*780*1700

JXDT-500L

700

60mm

2.0mm

0.5mm

3000W

780*780*2050

Blue Titanium Flat Panel Solar Collector

Blue Titanium Flat Panel Solar Collector Specification

Overall Specifications

Dimension LxWxH (mm)

2000*1000*100

Gross Area (m2)

2

Number of covers(pcs.)

1

Cover material

Low iron, tempered glass

Cover Thickness(mm)

3.2

Cover dimension(mm)

0.985X1.95

Cover Transmission

>91.4%

Vacuum Tube Performance and Specification:

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø48±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø37±0.7mm; Glass thickness 1.6±0.15mm

Tubedimension

47*1750mm

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Heat Pipe Performance and Specification:

Heat pipe material

TU1

Condenser dimensions(mm)

Ø14

Heat-transfer-fins

Aluminum fin

Max. operation pressure

6bar

ManifoldPerformance and Specification:

Manifold header pipe

TU2 copper

Reflector Performance and Specification:

CPC reflector thicknessmm

0.35

Thermal Insulation

Insulation Material

Fiberglass

Insulation Thickness

45+/-5mm

Density

35kg/cube

Casing

Frame

Aluminum alloy

Frame Color

Silver or black

Back Plate

Stronger galvanized steel plate

Max Operation Temperature

95

Sealing Gasket

EPDM

  • Type:Flat-Plate
  • Pressure:Pressurized
  • Circulation Type:Indirect / Closed Loop (Active)
  • Heating System:Batch / ICS (Passive)
  • Connection Type:Split
  • Installation:Freestanding
  • Housing Material:Stainless Steel
  • Certification:CE
  • Capacity:100L-1000L
  • Place of Origin:Zhejiang, China
  • Brand Name:Lucky Solar
  • Model Number:JXSP-FP-500L
