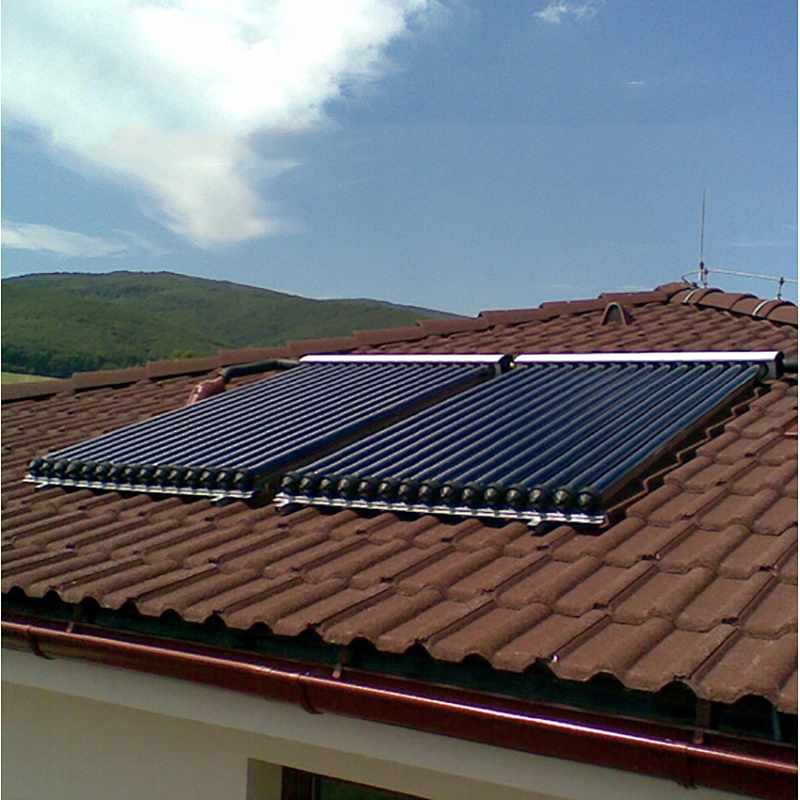

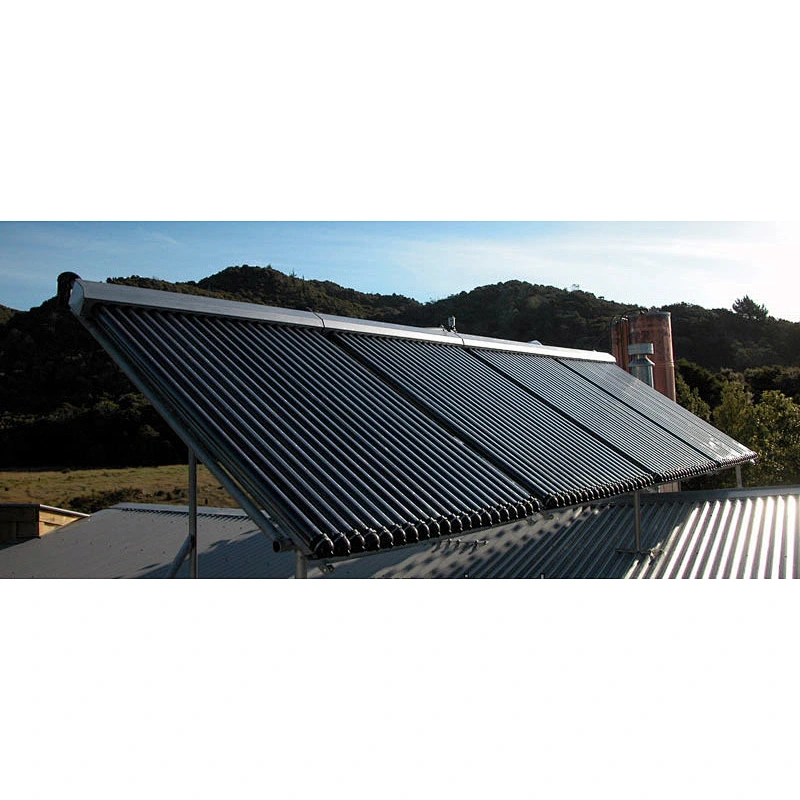

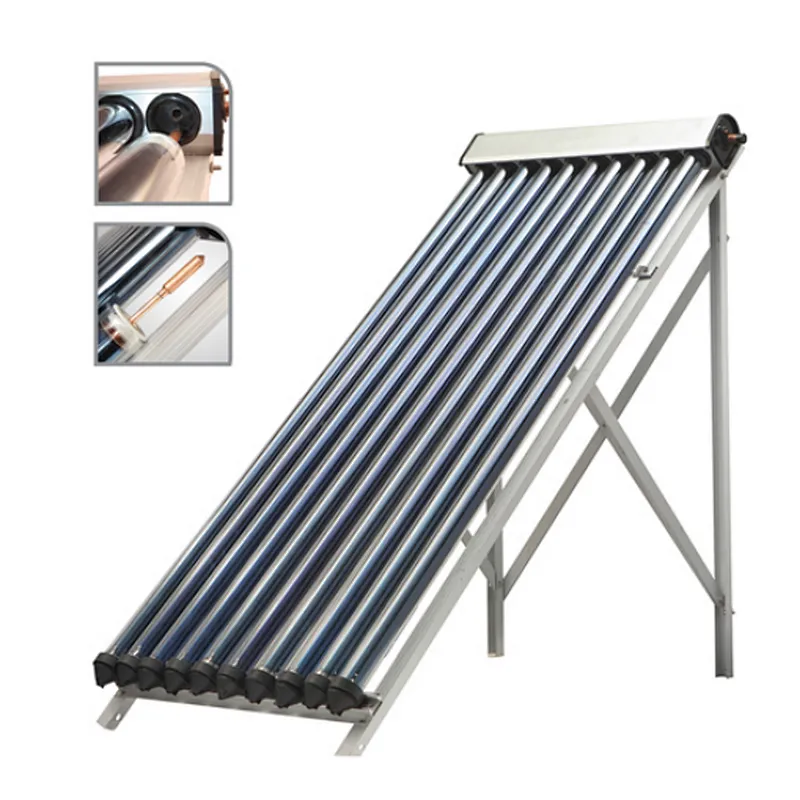

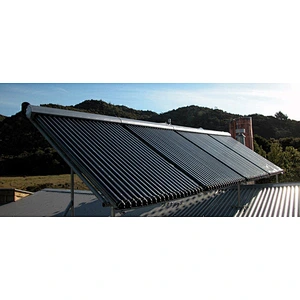

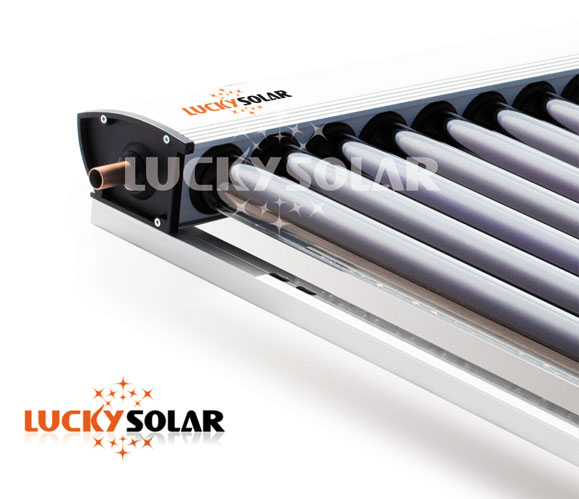

Premium solar collector

MODEL

Size

Tube Quantity

Heat Pipe Condenser

Aperture Area

Gross Area

Gross Length

Gross Width

Gross Height

Loading Qty

【mm】

【pcs.】

【mm】

【M2】

【M2】

【mm】

【mm】

【mm】

【20/40ft/set】

JXSPC-10

58x1800

10

24

0.941

1.600

2290

673

130

164/406

JXSPC-12

58x1800

12

24

1.128

1.852

2290

808

130

145/363

JXSPC-15

58x1800

15

24

1.410

2.315

2290

1010

130

127/315

JXSPC-18

58x1800

18

24

1.692

2.778

2290

1212

130

114/281

JXSPC-20

58x1800

20

24

1.880

3.087

2290

1347

130

97/240

JXSPC-25

58x1800

25

24

2.350

3.858

2290

1683

130

83/205

JXSPC-30

58x1800

30

24

2.820

4.630

2290

2020

130

70/173

Three-target Vacuum Tube Performance and Specification:

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm;Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm;Glass thickness 1.6±0.15mm

Tube dimension

58*1800mm

Hail resistance

Ø25mm

24mm Premium Heat Pipe Performance and Specification:

Heat pipe material

Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)

Condenser dimensions

Top: Ø24mm

Heat-transfer-fins

0.3mm/0.0098’’ thick sets of Aluminum fins

Starting speed

30s

Max. operation pressure

6bar

Max. testing pressure

12bar

Stagnation temperature

236℃

Manifold Performance and Specification:

Manifold header pipe

TU2 copper

Manifold casing

Anodized aluminum alloy (6063-T5/T6)

Insulation layer

Compressed rock wool.

Bracke Performance and Specification:

Bracket

Stronger galvanized steel structure

Vertical installation angle

Flat roof 0~700

Other Components Performance and Specification:

58 dia. Anti dust rubber ring

Cymene ethylene silicon rubber(110)

58 dia. White inner stopper of heat pipe

Cymene ethylene silicon rubber(110)

58 dia. Tube holder

Nylon 1013-(B)

58 dia. Tube holder cover

Nylon 1013-(B)

End cover for manifold

Nylon 1013-(B)

Left seal ring

Silicon rubber(110)
