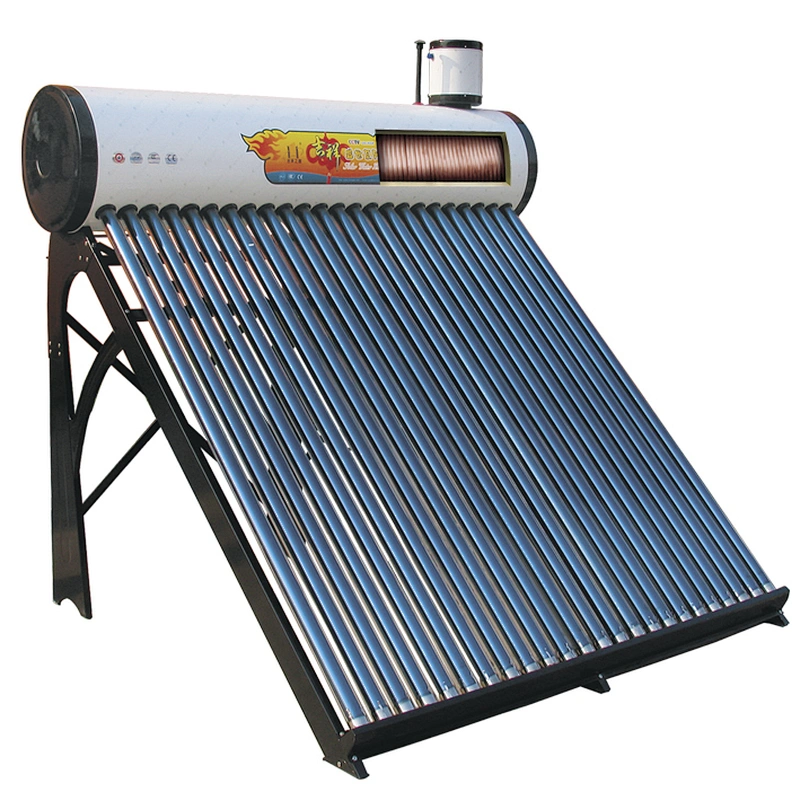

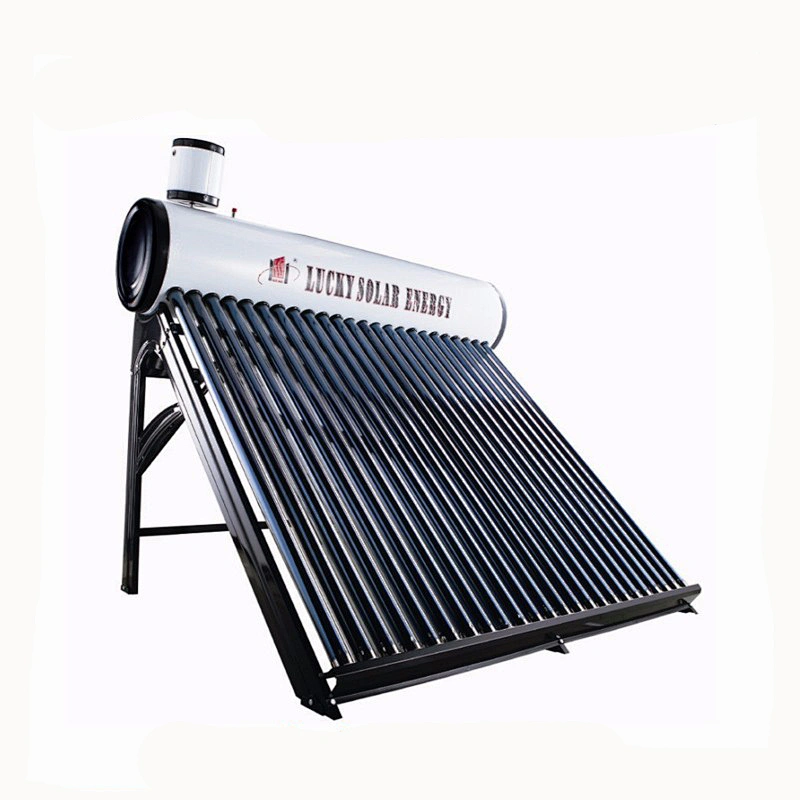

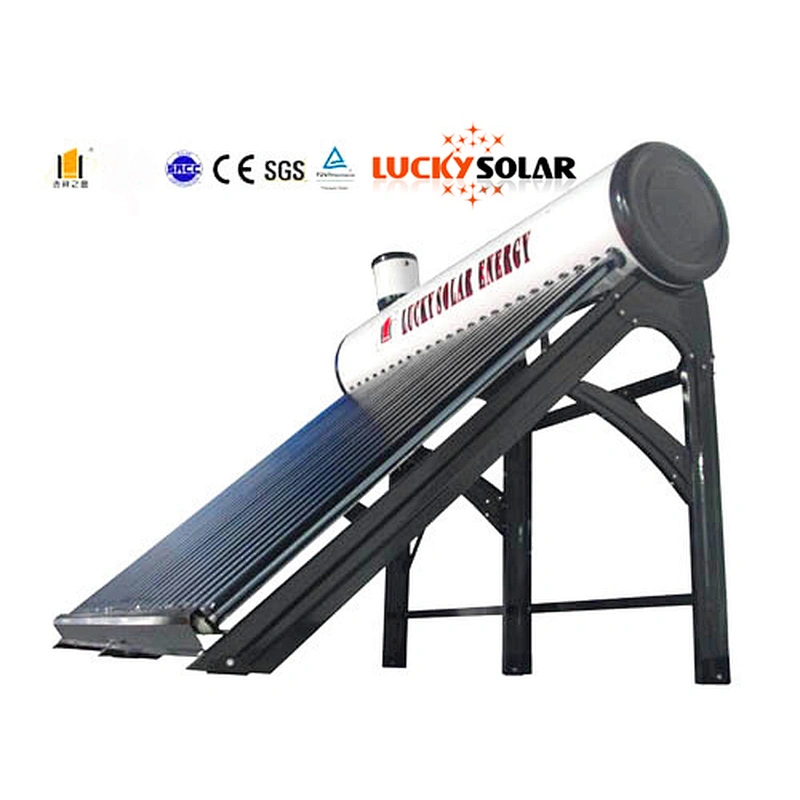

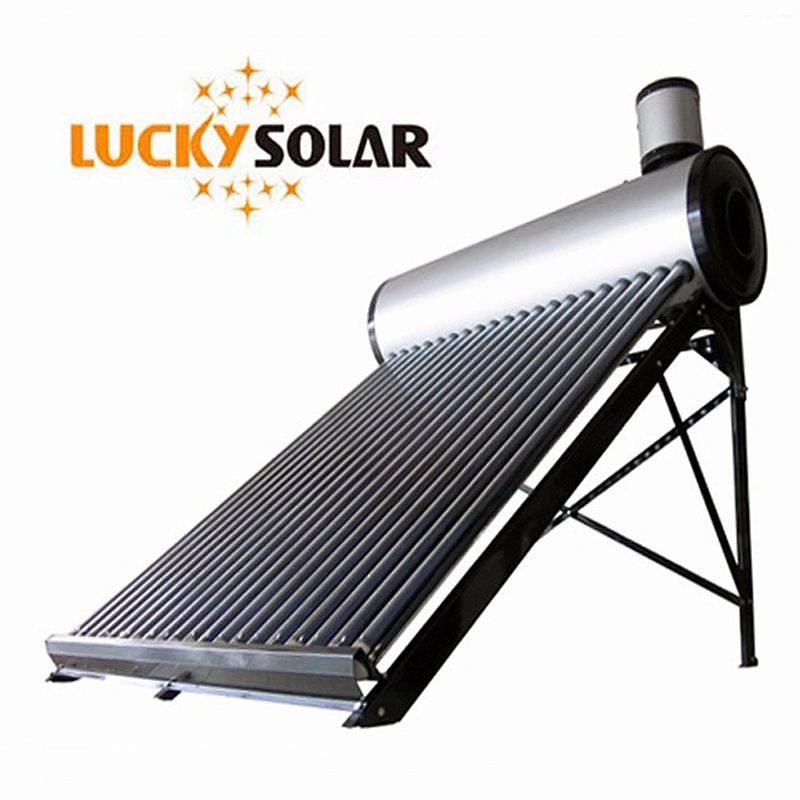

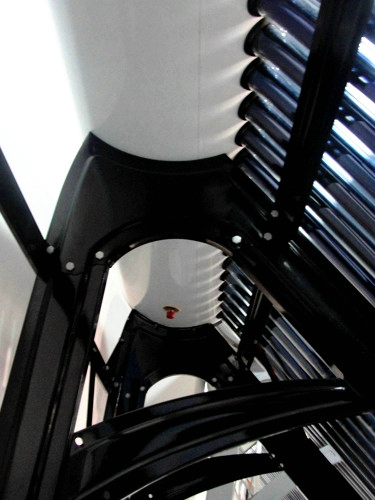

Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater
Pre-heated Copper Coil Solar Water Heater

Pre-heated Copper Coil Solar Water Heater

Model NO.
JX-PHP-58/1800/X
Price:
US $ 180.00-370.00 / sets
Delivery:
FOBShanghai/Ningbo
Minimum order quantity:
10 sets
Supply Ability:
5000 sets / Month
Country of Origin:
Zhejiang, China
Stock Time:
10 Days

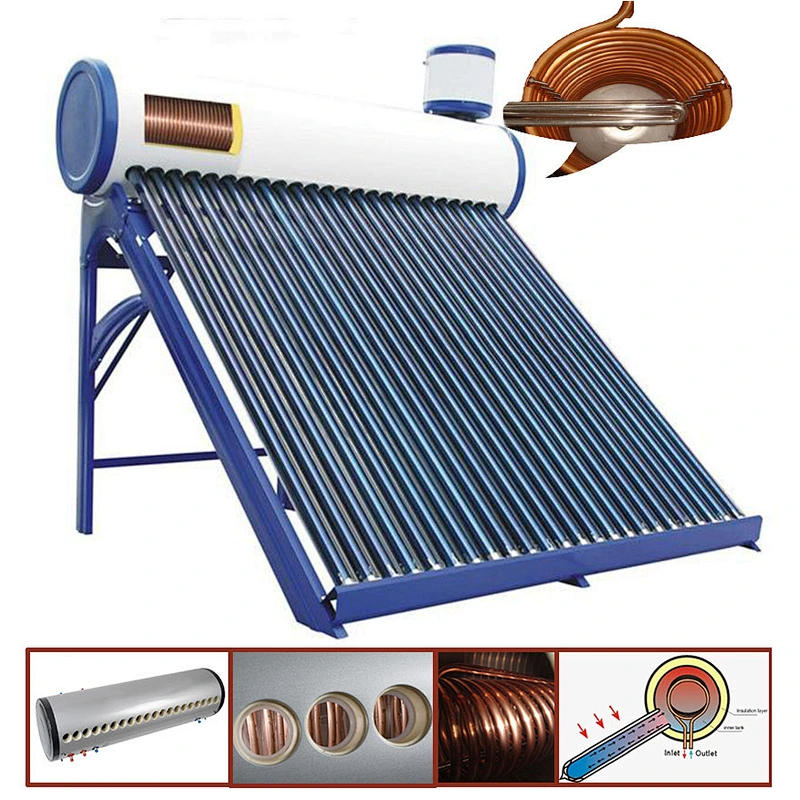

JX-PHP series solar water heater:
Capacity: 180L, 200L, 240L, 300L, 360L.

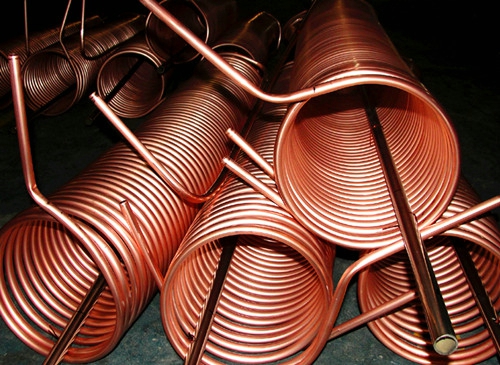

Copper Coil from 20m-40m depends on different specification.
Quantity:

Pre-heated Copper Coil Solar Water Heater:

Data Sheet

MODEL:

Solar Vacuum Tube

Aperture Area

Capacity

Loading Qty/sets

Item No.

Qty /pcs

Size /mm

M2

L

20GP/40HQ

JXPH-58/1800/22

22

Φ58 X 1800

2.046

220

30/74

JXPH-58/1800/24

24

Φ58 X 1800

2.325

240

32/77

JXPH-58/1800/30

30

Φ58 X 1800

2.790

300

26/63

JXPH-58/1800/36

36

Φ58 X 1800

3.348

360

22/53

Pre-heated Solar Heating System Specification

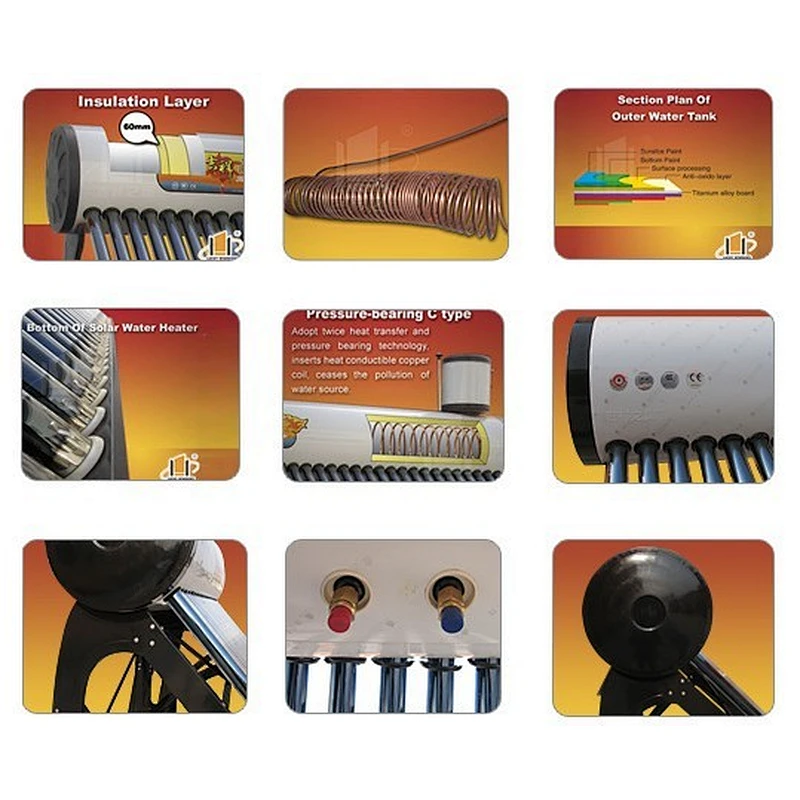

WATER STORAGE TANK SPECIFICATION

Material of out tank

High quality color coated steel or stainless steel,optional

Material of inner tank

Food grade SUS304-2B Stainless Steel

Tank insulating layer

50/55/60mm high-density polyurethane foamed

Inlet and outlet hole

Male G 1/2

Welding:

Argon arc welding

Copper coil diameter

12mm

Max pressure

Coil max. Working pressure: 0.8Mpa.

Coil thickness

0.8mm

EVACUATED VACUUM TUBESN SPECIFICATION

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Tube dimension

58*1800mm

Resistant Hail

≤25mm

Useful life

15 years

BRACKETSPECIFICATION

Bracket:

Much bigger and stronger galvanized steel

Bracket angle:

22,38,45optional,pitched roof,flat roof optional.

Fastening pieces:

Zinc-coated stainless steel.

COMPONENTS

Back up system.(Electric heater element)

Anti-drying-out electric heater element(220v/50hz)

Assistant tanks

5/8/12 liters assistant tank

Magnesium bar

Each unit with one pcs of magnesium bar

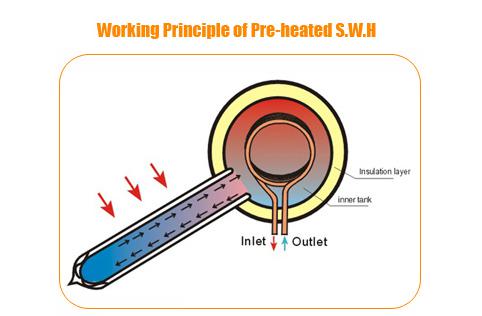

Working principle:

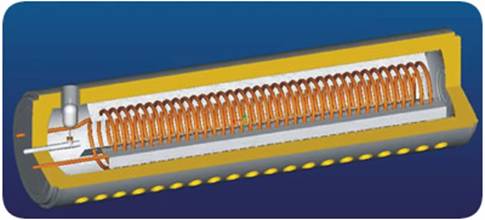

Heat exchanger inside the tank which provides more than 1.5m2 of heat transfer area. When water flows through the coil, it absorbs heat from the water inside the solar collector tank. The solar collector tank is therefore a thermal store.

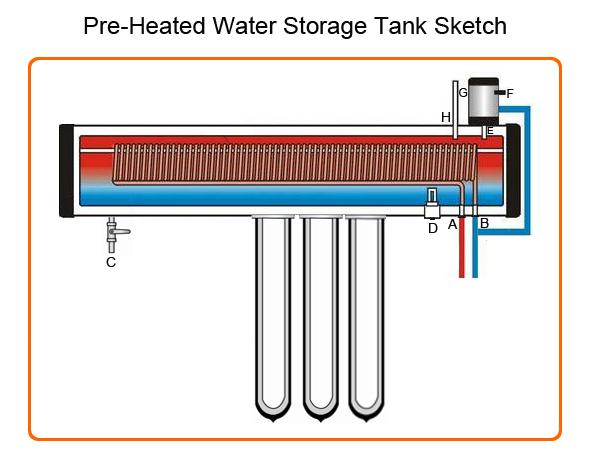

External Connections:

Item:

Size

Color/Connection

Cold Water Inlet

1/2”

Connection A

Hot Water Outlet

1/2”

Connection B

Drainage Hole

1/2”

Connection C

Electric Heater Element

47mm

Connection D

Main Tank and Assistant Tank Connection pipe

1/2”

Connection E

Cold Water Inlet on Assistant Tank

1/2”

Connection F

Exhausted Hole on Assistant Tank

1/2”

Connection G

Exhausted Hole on Main Water Tank

1/2”

Connection H
