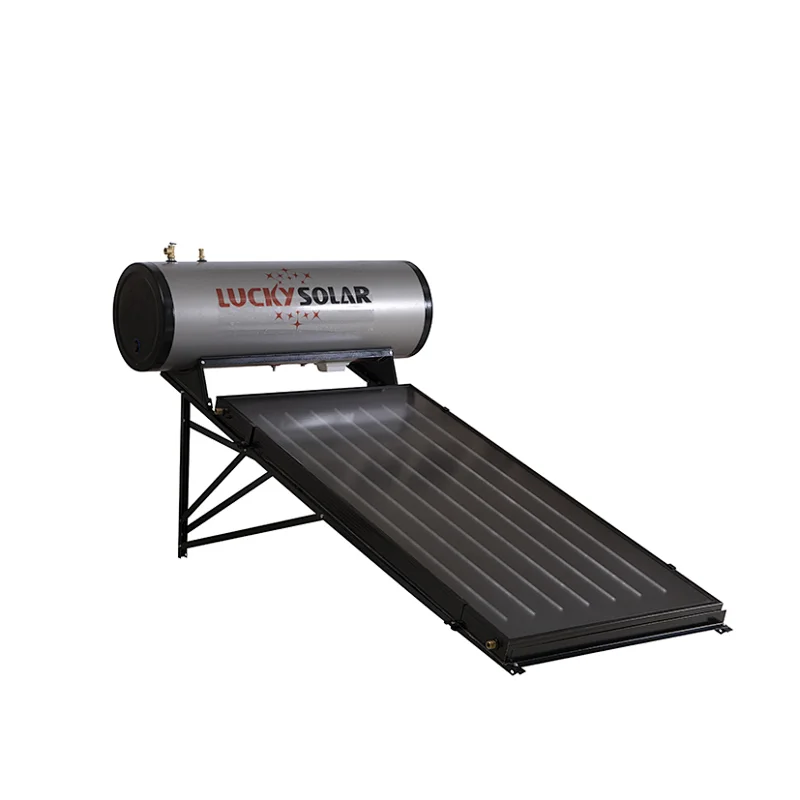

Compact flat plate solar water heater
Compact flat plate solar water heater

Compact flat plate solar water heater

Model NO.
JXFPC-X
Price:
US $ 200.00-500.00 / sets
Delivery:
FOB, EXW, CFR, CIF
Minimum order quantity:
2 sets
Supply Ability:
6000 sets / Month
Country of Origin:
Haining, zhejiang
Stock Time:
15 Days
Quantity:

Working Principle:

LUCKY high pressure compact thermo siphon systems are systems which producing hot water from solar based on the principle of nature circulation between cold and hot water. The advantage of this system is that it avoids using a conventional pump.



Flat Panel Solar Collector Specification

Specifications

JXFS-GV2.00T

Dimension LxWxH (mm)

2000*1000*80

Gross Area (m2 )

2

Aperture Area (m2 )

1.95

Absorber Area (m2 )

1.9

Number of covers

1

Cover material

Low iron, tempered glass

Cover Thickness(mm)

3.2

Cover Transmission

>91.4%

Weight

36Kg

Absorber

Material

Aluminum board

Surface Treatment

Sputtering

Absorptivity

95±2%

emissivity

5±2%

Construction Type

Grid type

Header Material

Copper TP2/CA1220

Header tuber size

∮22mm*Thickness 0.8mm

Riser Material

Copper TP2/CA1220

Riser tuber size

∮8mm* Thickness 0.75mm

Work Pressure

0.6Mpa

Test pressure

1.2Mpa,keeps 5 minutes

Thermal Insulation

Insulation Material

Fiberglass

Insulation Thickness

45+/-5mm

Density

35kg/cube

Casing

Frame

Aluminum alloy

Frame Color

silver or black

Back Plate

Aluminum plate

Max Operation Temperature

95℃

Sealing Gasket

EPDM



Water Tank & Bracket Specification

Water tank

MODEL:

JXFS- 150L

Content:

150L

Out tank material & thickness:

Color coated steel

Inner tank material & thickness:

SUS-304-2B stainless steel

Testing pressure:

1.2Mpa

Working pressure:

0.75Mpa

Insulation hickness

42% kg/m³ high-density polyurethane foamed, closed-cell foam rate:98%.

Connectors:

3/4inch NPT

Accessories:

Magnesium Bar, T/P Valve.Pressure reducing valve, Electric heater well install on the tank.
Thermostati mixing valves, Vacuum relief valve, TK-7 controller do not include. Optional.

Bracket

Bracket material

Stronger pre-coated galvanized steel.

Bracket angle

0, 18,22,38,45 optional, pitched roofs, flat roof optional.

Bracket fastening pieces:

Made of zinc-coated stainless steel..

  • Type:Flat-Plate
  • Pressure:Pressurized
  • Circulation Type:Indirect / Closed Loop (Active)
  • Heating System:Batch / ICS (Passive)
  • Connection Type:Direct-Plug
  • Installation:Freestanding
  • Housing Material:Stainless Steel
  • Certification:CE
  • Capacity:100L to 300L
  • Place of Origin:Haining
  • Brand Name:Lucky
  • Model Number:JXFPC-X
