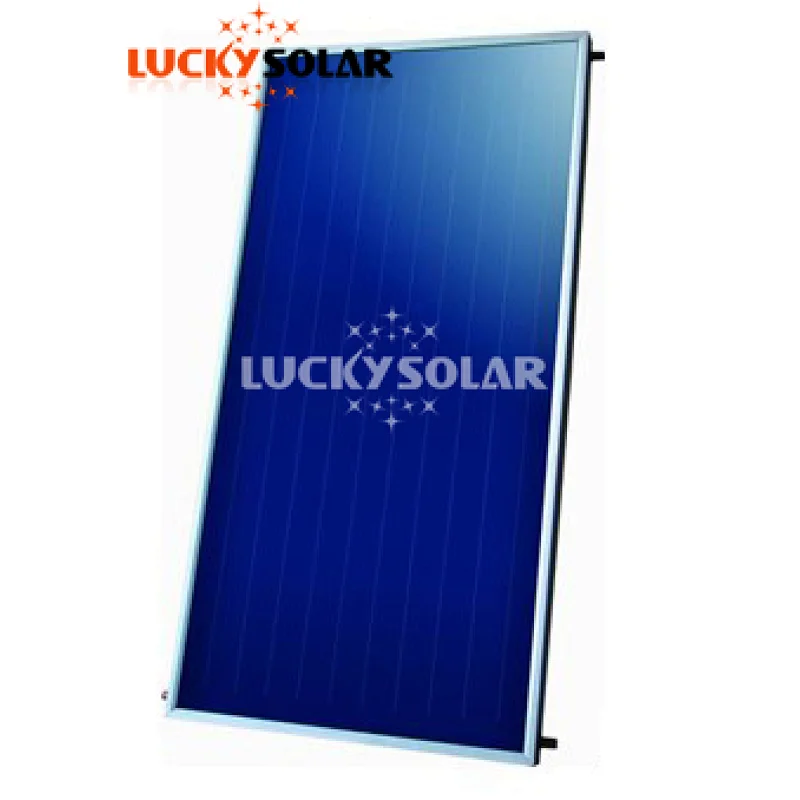

Bluetec Heat Absorbing Coat flat plate collector
Bluetec Heat Absorbing Coat flat plate collector

Bluetec Heat Absorbing Coat flat plate collector

Model NO.
JXFP-240l
Price:
US $ 80.00-166.00 / set
Delivery:
EXW, FOB , CIF , CFR
Minimum order quantity:
1 set
Supply Ability:
300 set / Day
Country of Origin:
haining city, zhejiang provinces
Stock Time:
7 Days
Bluetec Heat Absorbing Coat flat plate collector
Quantity:

Key Specifications/Special Features:

Imported Bluetec Heat Absorbing Coat, Gathering Energy WisdomBluetec heat absorbing board, imported from Germany, with magnetron sputtering technology. The surface is coated with gradient-changed multilayer(AI-N/AI), which leads to the good spectral selectivity and the extremely high thermal efficiency. Top Level Heat Efficiency, Enjoy Warmth from SunshineSolar absorption rate reaches 92%, emissivity is only 8%, energy saving and low carbon release to make comfortable enjoyment.



Product parameter

Absorber paint layer material: Bluetec collector
Absorber materials: 0.2/0.3 mm Copper plate or 0.2/0.3 mm Aluminum plate
Area of heat collector: 2/2.42 sq m
Effective area of heat collecting: 1.83/2.18 sq m
Liquid capacity of heat collector: 1.4/2.1 L
Glass thickness: 3.2/4 mm
Maximum operating pressure: 6 Bar
Maximum testing pressure: 15 Bar
Wide open temperature: 200 °C
Weight: 42kg
Size Dimension: 2000 x 1000 x 80(mm)/2200 x 1100 x 94(mm)

  • Type:Flat-Plate
  • Pressure:Pressurized
  • Circulation Type:Indirect / Closed Loop (Active)
  • Heating System:Batch / ICS (Passive)
  • Connection Type:Direct-Plug
  • Installation:Freestanding
  • Housing Material:Other
  • Certification:CE; Other
  • Capacity:2000mmx1000mmx80mm/2050mmx1250mmx80mm
  • Place of Origin:China
  • Brand Name:Lucky solar
  • Model Number:JXFP-240l
